Productfeatures:

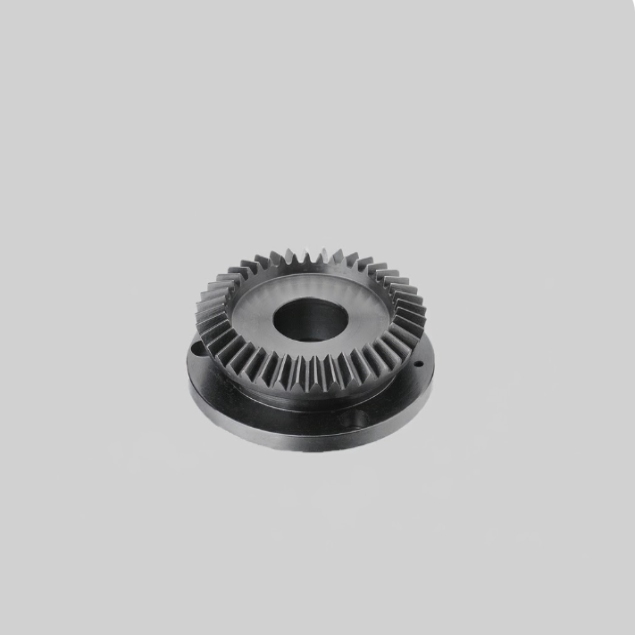

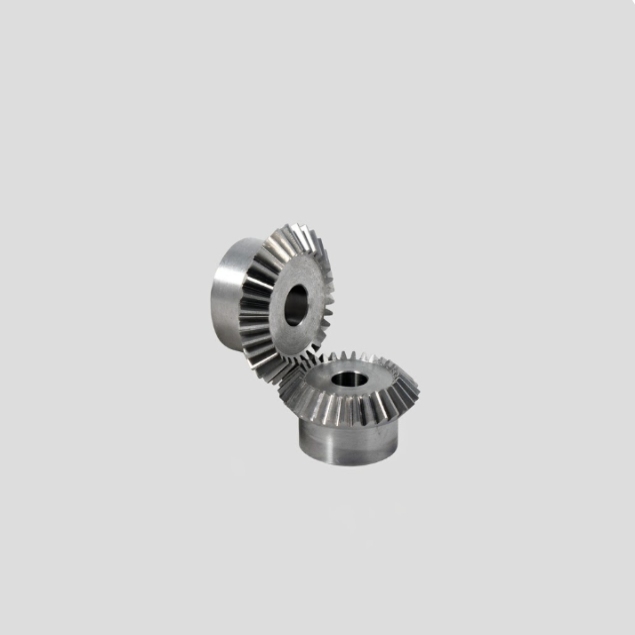

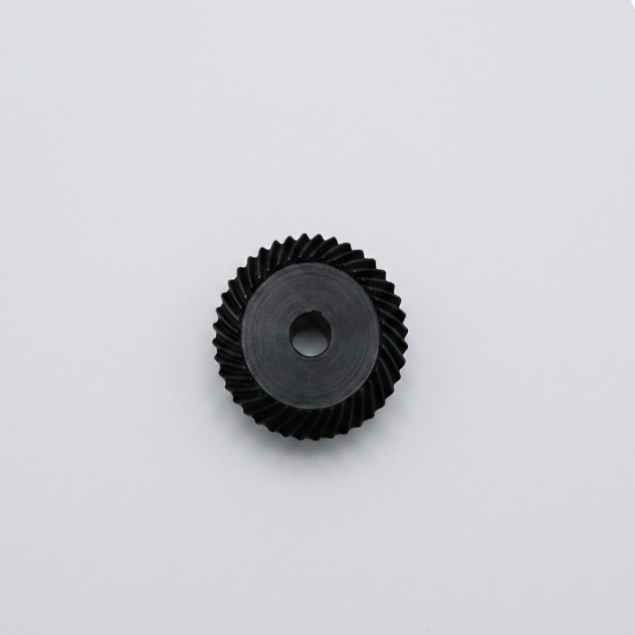

El engranaje helicoidal cónico IHF de acero inoxidable mecanizado por CNC, fabricado mediante fundición y forja, es un componente de transmisión de alto rendimiento diseñado para sistemas mecánicos complejos y de alta resistencia. Integra mecanizado de precisión CNC avanzado con procesos de forja y fundición para ofrecer una resistencia, precisión y durabilidad superiores en aplicaciones industriales personalizadas.
Este equipo se utiliza ampliamente en:
Sistemas de automatización industrial
Maquinaria y equipos de alta resistencia
Maquinaria minera y de construcción
Sistemas de transmisión de energía
Equipos marinos y de alta mar
Conjuntos de accionamiento mecánico a medida
| Product Name | bevel gear |
| Material | Steel |
| shape | Bevel |
| warranty | 1.5 year |
| core components | PLC, Bearing, Motor, Pressure Vessel, Gear |
| Trademark | iHF |
| place of origin | Guangdong, China |
| pressure angle | 20 |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Bore | Small hole , OEM hole |
| Color | Natural / Black/ as demands |
| Presicion grade | DIN7 DIN6 |
| Gross weight per batch | 2.500 kg |
| Product name | Bevel Gear |
| Type | spur/helical/bevel/worm gear |
| Model | M0.5-M8 |
| Pressure angle | 20 degree |
| Presicion grade | DIN5 to DIN7 |
| Color | Natural / Black/ as demands |
| Teeth Number | as demands |
| Hub | with hub or without hub |
| Set screw | can be customized |
| Bore | Small hole , OEM hole |
| Materials Available | Stainless Steel, Carbon Steel, Brass, Bronze, Iron, Aluminum Alloy，SCM415,20CrMoTi,40Cr,SUS303/304,etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Surface Treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Hardness | 55- 60HRC |
| Machining Process | Material preparation, normalizing, rough turning, quenching and tempering, semi fine turning outer circle, rough turning spiral surface, fine turning (fine grinding) inner hole end face, keyway, semi fine turning spiral surface, pliers (rest incomplete teeth), semi fine grinding outer circle, semi fine grinding spiral surface, grinding center hole, fine grinding outer circle, fine grinding spiral surface, finished product inspection |
| Applications | Electric machinery, metallurgical machinery, environmental protection machinery, electronic and electrical appliances, road construction machinery, chemical machinery, food machinery, light industrial machinery, mining machinery, transportation machinery, construction machinery, building materials machinery, cement machinery, rubber machinery, water conservancy machinery and petroleum machinery |
| Advantages | 1. Produce strictly in accordance with ANSI or DIN standard dimension 2. Material: SCM 415 steel 3. Bore: Finished bore 4.Precision grade: DIN 5 to DIN 7 5. Surface treatment: Carburizing and Quenching 6. Module: From 1 to 4 7. Tooth: From Z15 to Z70 8.Meshing transmission, accurate transmission ratio, stable transmission and low noise. 9.It is applicable to a wide range of power and speed 10.High efficiency,long service life, safe and reliable operation 11.Low cost,need to professional equipment process |
